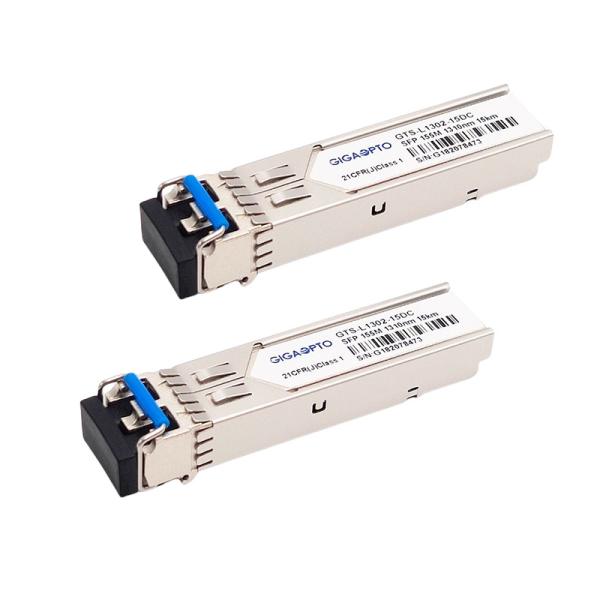

Cisco MFELX1 Compatible SFP 155Mbps 100BASE-LX 1310nm 15km SMF DOM Duplex LC Transceiver Module
Description Of Cisco MFELX1 compatible SFP
This Cisco MFELX1 compatible SFP is factory pre-programmed with all the necessary configuration data for seamless network integration and performs identically to Cisco OEM SFP transceiver but much more cost effective.
Featuring low power consumption, this hot swappable Cisco MFELX1 Compatible SFP is ideal for Internet Service Provider (ISP) Fast Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Specification Of Cisco MFELX1 compatible SFP
| Compatible Brand |
Cisco |
Compatible P/N |
MFELX1 |
| Vendor |
Gigaopto |
Data Rate |
155Mb/s |
| Connector |
LC Duplex |
Distance |
15km |
| DOM/DDM |
Suppose |
Fiber Type |
SMF |
| Warranty |
3 Years |
Case Temp. |
Standard: 0 to 70°C (32 to 158°F) |
| Wavelength |
1310nm |
Voltage |
3.30V |
| TX Type |
FP 1310nm |
RX Type |
PIN photo-detector |
| TX Power (dBm) |
-13~-8dBm |
RX Sensitivity |
<-30dBm |
| Extinction Ratio |
>10dB |
Overload |
>-3dBm |
| Protocols |
IEEE802.3ab, GR-468, MSA Compliant |
Features Of Cisco MFELX1 compatible SFP
- Hot-pluggable Cisco Compatible SFP
- Functionally equivalent to Cisco MFELX1
- Operating data rate up to 155Mbps
- 1310nm FP laser transmitter
- 15km with 9/125 µm SMF
- Single 3.3V power supply and TTL logic interface
- duplex LC connector interface
- International Class 1 laser safety certified
- Operating case temperature range:
Standard: 0°C~70°C
Industrial: -40°C~85°C
- RoHS Compliant
- Monitoring Interface Compliant with SFF-8472
Application Of Cisco MFELX1 compatible SFP
- Fast Ethernet
- SONET OC-3/SDH STM-1
- ATM Switches and Routers
FAQ
Q: Are you factory or trading company?
Shenzhen GigaOpto Technology Co., Ltd is a specialized manufacturer of optical transceivers from 155Mbps to 100Gbps, covering PON, SFP, SFP+, SFP28, QSFP+, QSFP28, CFP/CFP2/CFP4, FC, Video SFP, 1x9, XFP, x2, Xenpak, SFF optical transceiver series, as well as Active Optical Cable, Direct Attach Cable, OSA and so on. etc.
Q: Can I have a sample order? What is your MOQ of Cisco MFELX1 compatible SFP?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
Q: Are your transceivers compatible?
Yes, our compatible optical modules all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP, Huawei, Alcatel-Lucent, H3C and more.
Q: How can you guarantee the quality of Cisco MFELX1 compatible SFP?
GigaOpto has rich experience in providing trusted quality service to customers, with a perfect quality management system, all of our products were 100% tested before shipment.
Q: What is the operating temperature range of this Cisco MFELX1 compatible SFP?
Commercial temperature range(Com.) : 0 to 70℃
Extended temperature range(Ext.):-20 to 85℃
Industrial temperature range(Ind.)::-40 to 85℃
Q: Can you accept OEM/ODM orders for this Cisco MFELX1 compatible SFP?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q: What is the lead time of Cisco MFELX1 compatible SFP?
For usual products, We keep stock, could ship about 3 days after receiving payment. For big quantities and special products, Please check the lead time with our sales representative.
Q: What is your after-sales service of Cisco MFELX1 compatible SFP?
All our customers can get three years quality warranty and lifetime technical support.
